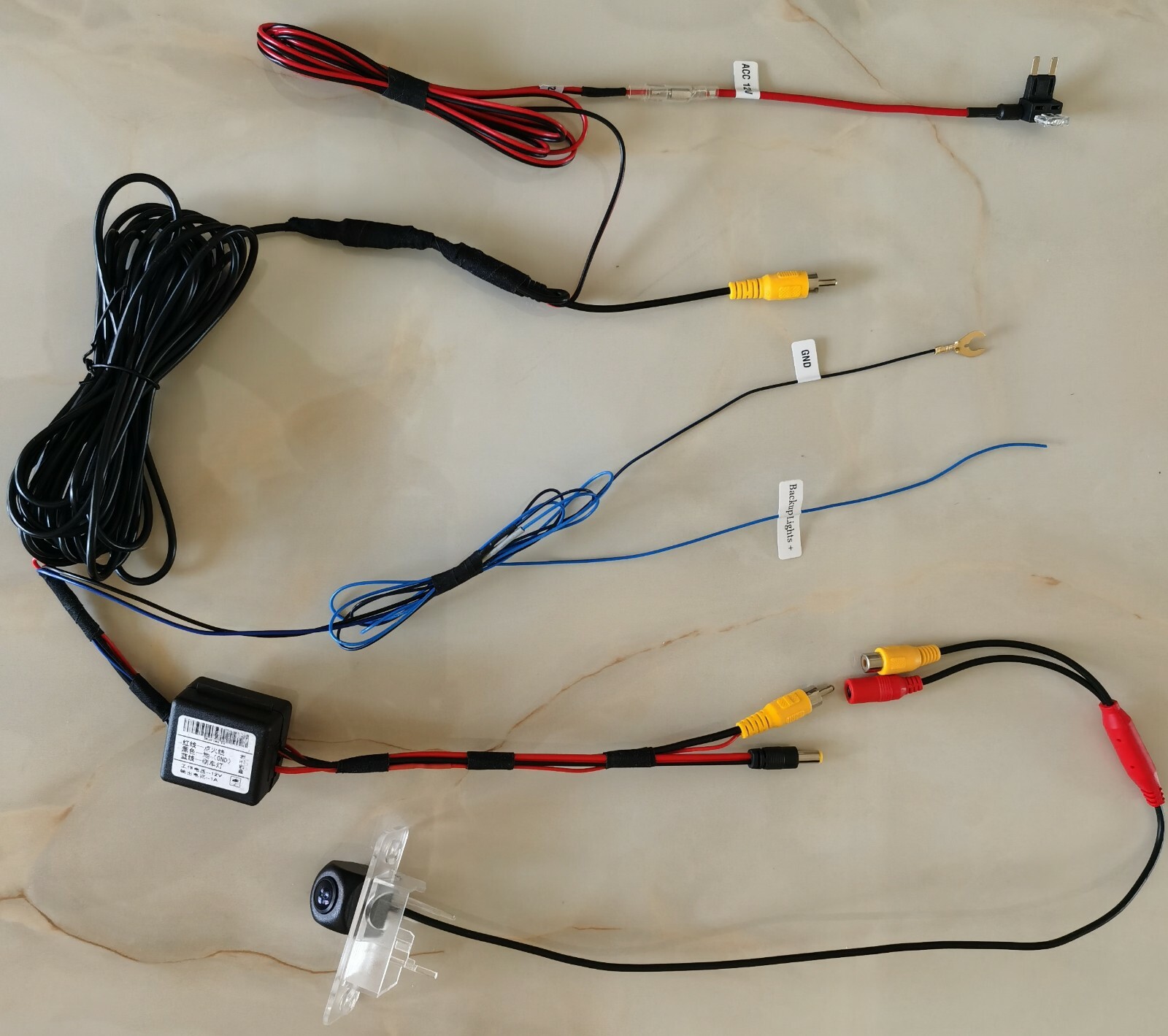

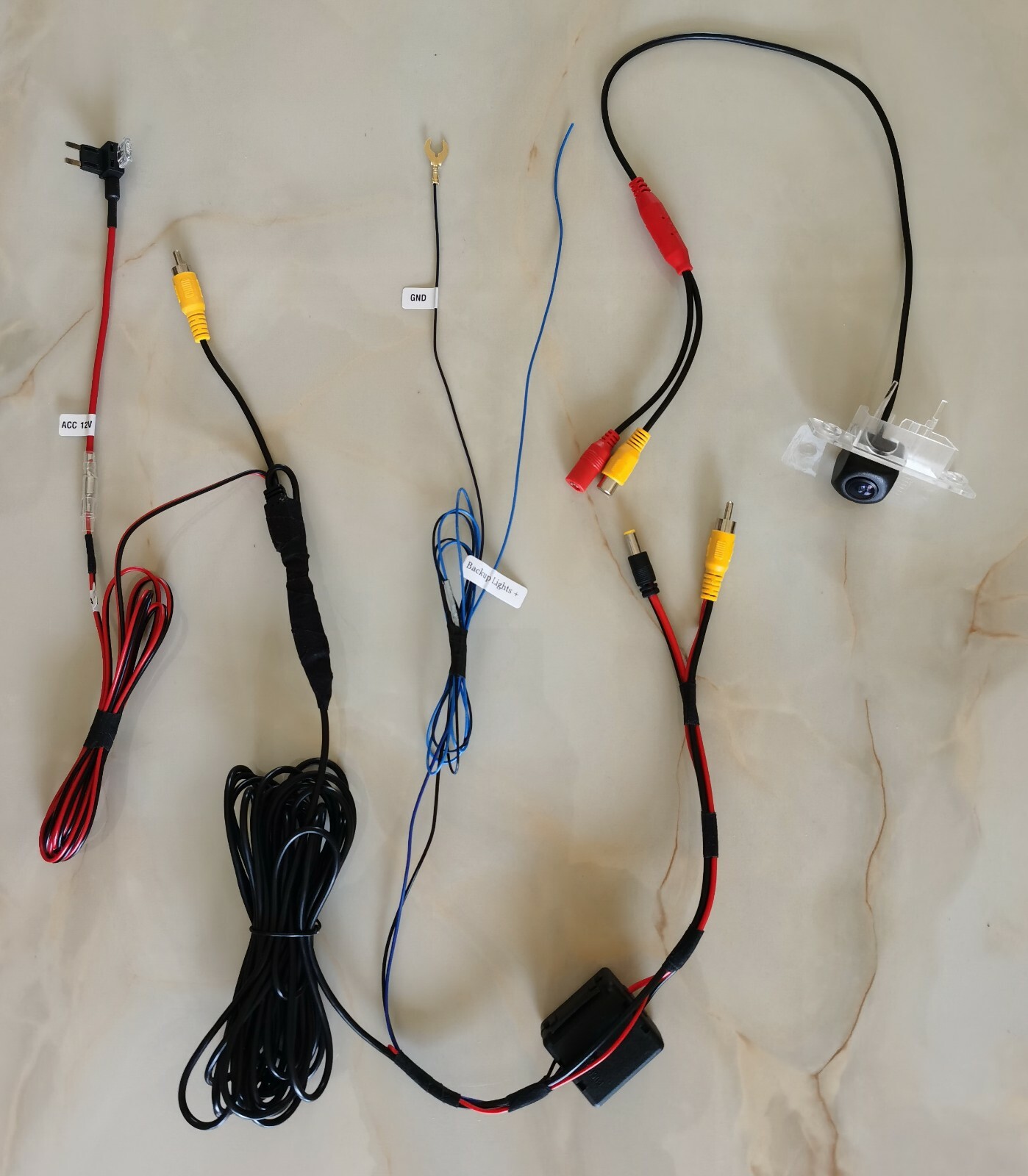

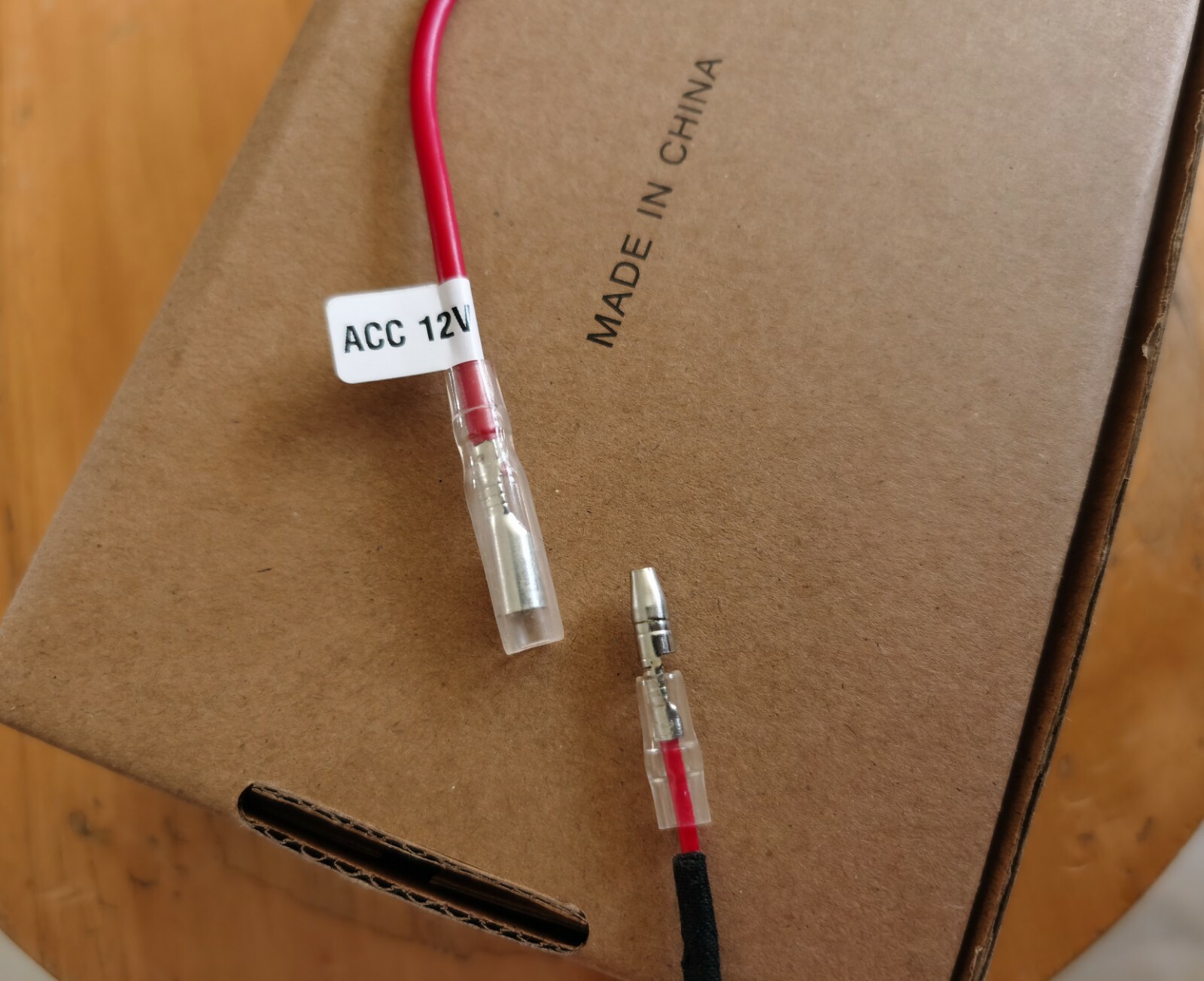

1. ACC 12V+
2, the positive of reverse light
3. Ground wire.
Finally, you must install the inner cover of the trunk and close the trunk. There is a sensor on the trunk. If you don’t close the trunk, the camera will also have a black screen.

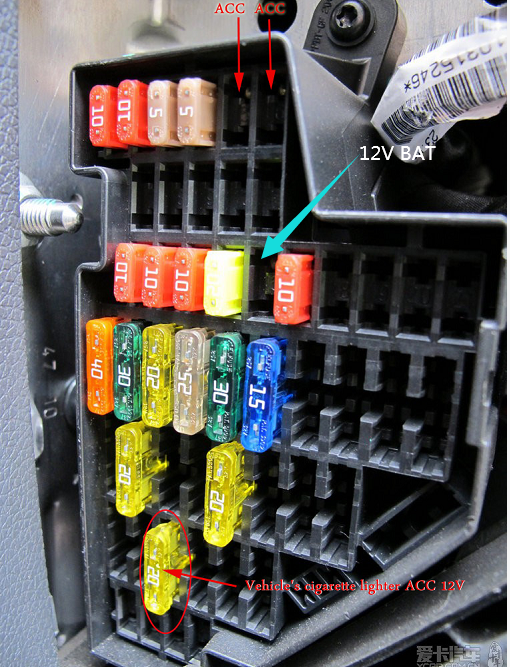

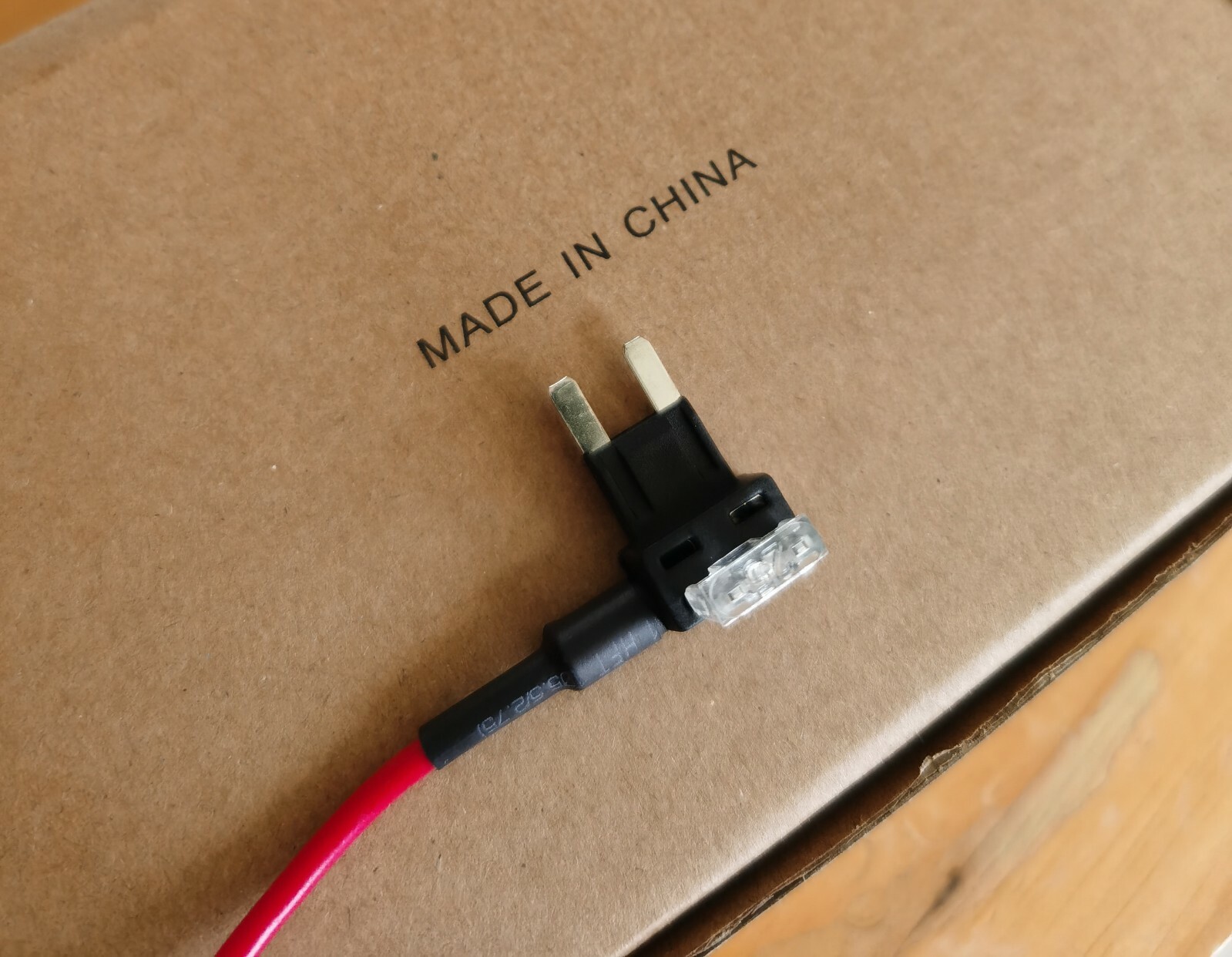

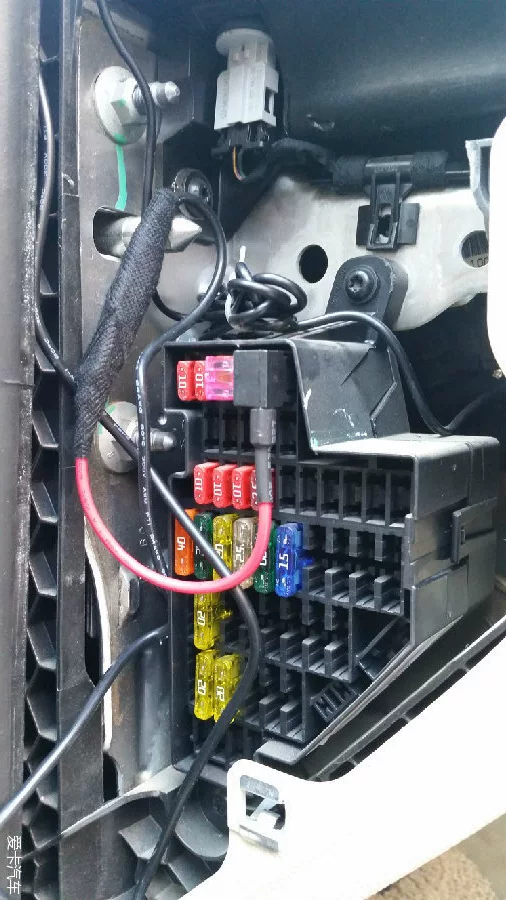

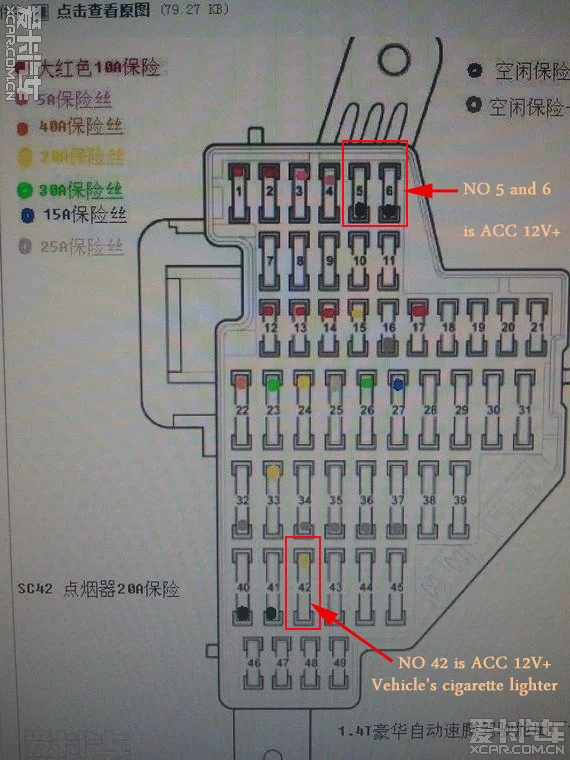

Note： that the No. 5 and No. 6 fuse terminals are small, No. 42 is medium.
![[Image: O1CN01lJftWe1OjsV6dUZCW_!!30701742.jpg?t=1566204159000]](https://rcd330.com/wp-content/uploads/2026/10/d69787c801d69e952c6b.webp)
![[Image: O1CN01IO6XhI1OjsV4LDUX1_!!30701742.jpg?t=1566204155000]](https://rcd330.com/wp-content/uploads/2026/10/a80ca8280fb187d0299d.png)
![[Image: O1CN01rzHyTi1OjsV5kY9xA_!!30701742.jpg?t=1566204156000]](https://rcd330.com/wp-content/uploads/2026/10/75b43fdb5867560d80c7.webp)
Originally published by ddren. Original forum topic #24.
